BA100E D240
Electrically driven pump 4" for sewage and contaminated water.
Request your quote Download the brochureThe BA100E D240 is an electric pump suitable for sewage and contaminated water. The pump is dry self-priming and is equipped with 4" male Perrot quick couplings.
Specifications
- Type: BA100E D240/MC+V
- Applications: sewage, contaminated water, …

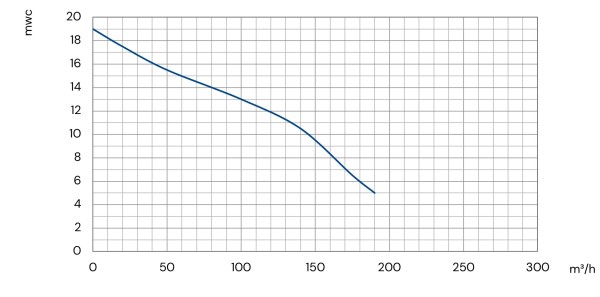

- Max. pressure: 19 mwc
- Max. capacity: 190 m³/h
- Motor: 3 x 400 V, 50 Hz
- Power output: 11 kW at 1.480 rpm
- Nominal current: 22 A
- Free impeller passage: 80 mm
- Weight: 700 kg
- L x W x H: 1.950 x 820 x 1.600 mm
- Coupling: suction and discharge side : Perrot quick couplings 4" male
- Centrifugal pump: automatic dry self priming centrifugal pump, equipped with vacuumpump MP50
- Characteristics: compact pump set, non return valve at discharge side, incl. vacuum and manometer, large free passage
- Level detection: 2 float switches for automatic start/stop
- Equipment: chassis with forklift pockets, lifting eye
- Plug: plug 32A 5P male
