The 100SL is a diesel-driven pump group, fully enclosed and is suitable for sewage water, sludge and slurry. The pump is equipped with two 4" male Perrot quick couplings.
If desired, an external diesel tank can be rented.

20250128 142050

Specifications

  • Type: Pioneer 100SL
  • Applications: sewage, sludge, slurry, ...
  • Max. pressure: 23 mwc
  • Max. capacity: 330 m³/h
  • Engine: Perkins 403J-17
  • Power output: 18,9 kW at 1.800 rpm
  • Free impeller passage: 76 mm
  • Starting system: 12 V electric start
  • Weight: 1.150 kg (full tank)
  • Tankage: 125 liters
  • Consumption: 3,9 liters/hour at maximum capacity
  • Autonomy: 32 h at maximum capacity
  • Dimensions: 2.350 x 1.300 x 1.460 mm
  • Couplings: suction and discharge side: Perrot quick coupling 4" male
  • Characteristics: automatic dry self priming, indefinite dry-running possible, without damage
  • Version: on skid, fully bunded canopy, sound attenuated 65 dB at 7 m
  • Level detection: float switches for automatic working
  • Equipment: spark-arrestor, central lifting eye, forklift pockets, Viton seals
  • Connection fuel tank: threeway valve for the connection of an external fuel tank

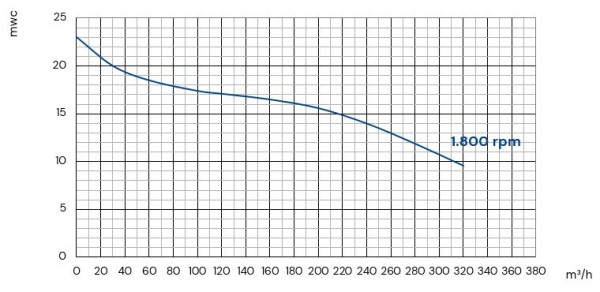

Q-H curve
