The LH23.0W is a three-phase high-pressure submersible pump with a slim shape. This pump is very wear resistant, is equipped with a 2" male Perrot quick coupling, and is suitable for clear and sandy water.

LH 23.0W

Specifications

  • Type: Tsurumi, LH23.0W
  • Applications: clear water, sand carrying water, …
  • Max. pressure: 39 mwc
  • Max. capacity: 36 m³/h
  • Motor: 3 x 400 V, 50 Hz
  • Power output: 3,87 kW at 2.820 rpm
  • Nominal current: 6,5 A
  • Free impeller passage: 6 mm
  • Weight: 46 kg (without cable)
  • Height: 630 mm
  • Diameter: 185 mm
  • Coupling: discharge side : Perrot quick coupling 2" male
  • Characteristics: durable, hardwearing, compact slim-lined contractor pump
  • Cable: 20 m power cable
  • Start/stop: start-stop switch with thermo-magnetic motor protection
  • Plug: phase swap plug 16A 5P

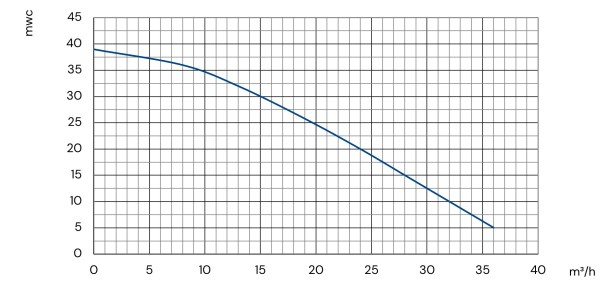

Q-H curve
