The 150-TR2 is a submersible aerator, fitted with a 3" threaded flange, lifting chain and silencer with control valve, and mounted on a foot stand. The aerator is suitable for aerating and mixing activated sludge, even at depth.

150 TR2

Specifications

  • Type: Tsurumi, 150-TR2
  • Applications: aeration of activated sludge
  • Max. air quantity: 279 Nm³/h
  • Max. depth: 4,7 m
  • Motor: 3 x 400 V, 50 Hz
  • Power output: 18,2 kW at 1.450 rpm
  • Nominal current: 30 A
  • Weight: 324 kg (without cable)
  • Height: 1.155 mm
  • Diameter: 700 mm
  • Coupling: air inlet with female threaded flange 3"
  • Characteristics: good mixing, even at depth, no haze, nor sedimentation, simple installation and maintenance
  • Equipment: mounted on foot stand, lifting chain, 20 m power cable, silencer with control valve
  • Start/stop: start-stop control box with thermo-magnetic motor protection
  • Plug: plug 63A 5P

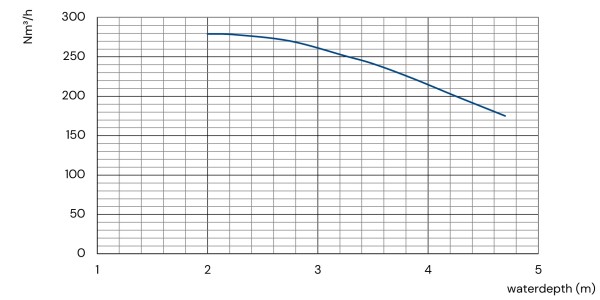

Air quantity - water depth
