The 15-TRN2 is a submersible aerator, mounted on a foot stand, and is equipped with a 1¼" threaded flange, lifting chain and silencer with control valve. An aerator is used for aerating and mixing activated sludge, even at depth.

15 TRN2

Specifications

  • Type: Tsurumi, 15-TRN2
  • Applications: aeration of activated sludge
  • Max. air quantity: 22 Nm³/h
  • Max. depth: 3,25 m
  • Motor: 3 x 400 V, 50 Hz
  • Power output: 1,88 kW at 2.850 rpm
  • Nominal current: 3,6 A
  • Weight: 84 kg (without cable)
  • Height: 700 mm
  • Diameter: 420 mm
  • Coupling: air inlet with female threaded flange 1¼"
  • Characteristics: good mixing, even at depth, no haze, nor sedimentation, simple installation and maintenance
  • Equipment: mounted on foot stand, lifting chain, 10 m power cable, silencer with control valve
  • Start/stop: start-stop control box with thermo-magnetic motor protection
  • Plug: plug 16A 5P

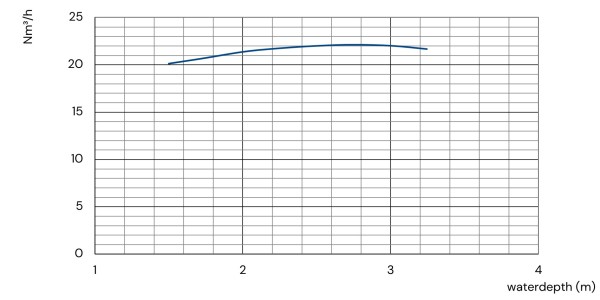

Air quantity - water depth
