The TE3-80HA is a portable petrol pump, equipped with 3" male Perrot quick couplings. The pump is suitable for irrigation and spraying (clear and slightly contaminated water).

TE3 80HA

Specifications

  • Type: Tsurumi, TE3-80HA
  • Applications: irrigation, … (clear water, slightly contaminated water)
  • Max. pressure: 32 mwc
  • Max. capacity: 60 m³/h
  • Engine: Honda WKT2
  • Power output: 3,7 kW at 3.600 rpm
  • Free impeller passage: 7 mm
  • Starting system: recoil start
  • Weight: 34 kg (full tank)
  • Tankage: 3,8 liters
  • Consumption: 1,5 liters/hour at maximum capacity
  • L x W x H: 550 x 390 x 450 mm
  • Coupling: suction and discharge side : Perrot quick couplings 3" male
  • Characteristics: self priming after first filling the pump casing, portable set, engine with oil level sensor
  • Equipment: metal protection frame, shock absorbers

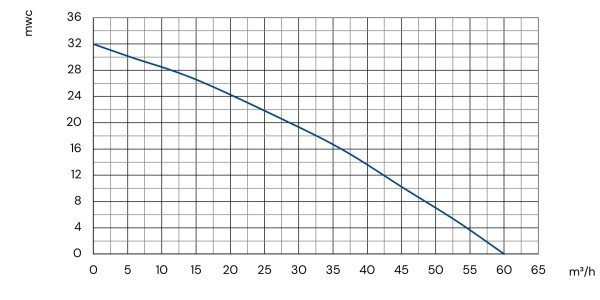

Q-H curve
