SKD100-160 & 572VE
High-pressure diesel-driven pump 6", sound attenuated, for clear and lightly polluted water.
Request your quote Download the brochureThe SKD100-160 is a high-pressure diesel-driven pump group, is not self-priming, and is fitted with a 6" male Perrot quick coupling and a DIN flange DN100 PN40. The pump is suitable for lances, fire extinguishing applications, clear and slightly contaminated water.
If desired, an external diesel tank can be rented.
Specifications
- Type: 572VE with SKD100-160 8E
- Applications: fluidization, fire fighting-like applications, clear and lightly polluted water, …

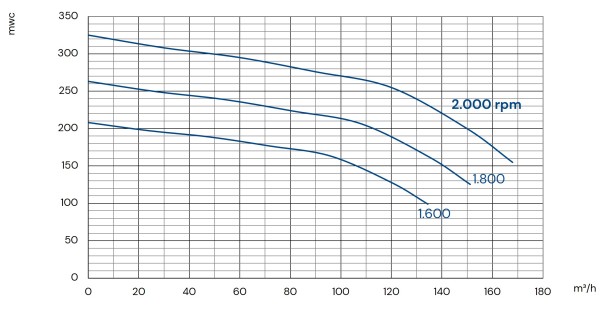

- Max. pressure: 325 mwc
- Max. capacity: 168 m³/h
- Engine: Volvo TAD572VE
- Power output: 144 kW at 2.000 rpm
- Free impeller passage: 5 mm (= free passage of prefilter)
- Starting system: 24 V electrical start
- Weight: 5.845 kg
- Tankage: external fueltank required / 300 liter Adblue
- Consumption: 30,5 liters/hour at maximum capacity
- Autonomy: 60 h at maximum capacity with tank of 2.000 liter
- L x W x H: 4.500 x 1.700 x 2.259 mm
- Coupling: suction : Perrot quick coupling 6" male, discharge : DIN flange DN100 PN40
- Characteristics: normal priming (not self priming), may not dry-run
- Version: on skid, sound attenuated, fully bunded canopy
- Control panel: LOFA control panel with speed regulation
- Level detection: automatic level adjustment by 2 floats or probe 4-20 mA
- Equipment: lifting eye, forklift pockets, min. flow security, spark arrestor, chalwyn valve, master switch
- Connection fuel tank: threeway valve for the connection of an external fuel tank
