The QI200 RT is a diesel pump, is easy to move, dry self-priming and fully enclosed. The pump is suitable for sewage water, muddy water and sludge, and is equipped with 8" male Triflex quick couplings.
If desired, an external diesel tank can be rented.

QI200 RT

Specifications

  • Type: SPP Pumps, QI200
  • Applications: sewage, sludge, slurry, …
  • Max. pressure: 33,5 mwc
  • Max. capacity: 540 m³/h
  • Engine: Isuzu 4LE1
  • Power output: 25,6 kW at 2.000 rpm
  • Free impeller passage: 75 x 90 mm
  • Starting system: 12 V electrical start
  • Weight: 1.450 kg (full tank)
  • Tankage: 220 liters
  • Consumption: 7,8 liters/hour at maximum capacity
  • Autonomy: 28 h (at maximum capacity)
  • L x W x H: 3.800 x 1.600 x 1.786 mm
  • Coupling: suction and discharge : Triflex quick couplings 8" male
  • Characteristics: automatic dry self priming, indefinite dry-running possible, without damage
  • Version: road trailer, easy to move, sound attenuated, fully bunded canopy 65 dB at 7 m
  • Equipment: central lifting eye, master switch
  • Connection fuel tank: threeway valve for the connection of an external fuel tank

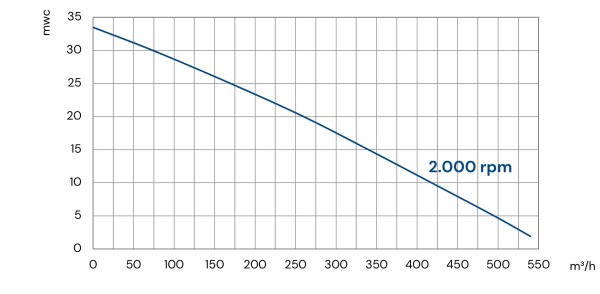

Q-H curve
