The QHH80 SK is a high-pressure diesel pump suitable for lances, fire extinguishing applications and clear to slightly contaminated water. The pump is fully enclosed, dry self-priming, and equipped with a 4" male Perrot quick coupling and a DIN flange DN80 PN16.
If desired, an external diesel tank can be rented.

QHH 80SK

Specifications

  • Type: QHH80 SK
  • Applications: fluidization, fire fighting-like applications, clear to slightly polluted water, ….
  • Max. pressure: 96 mwc
  • Max. capacity: 100 m³/h
  • Engine: Isuzu 4LE-2
  • Power output: 29,7 kW at 2.400 rpm
  • Free impeller passage: 20 mm
  • Starting system: 12 V electrical start
  • Weight: 1.320 kg (full tank)
  • Tankage: 220 liters
  • Consumption: 8,9 liters/hour at maximum capacity
  • Autonomy: 25 h at maximum capacity
  • L x W x H: 2.400 x 1.150 x 1.790 mm
  • Coupling: suction : Perrot quick coupling 4" male, discharge : DIN flange DN80 PN16
  • Characteristics: automatic dry self priming, indefinite dry-running possible, without damage
  • Version: on skid, sound attenuated, fully bunded canopy 69 dB at 7 m
  • Equipment: Chalwyn valve and spark-arrestor, central lifting eye, forklift pockets
  • Connection fuel tank: threeway valve for the connection of an external fuel tank

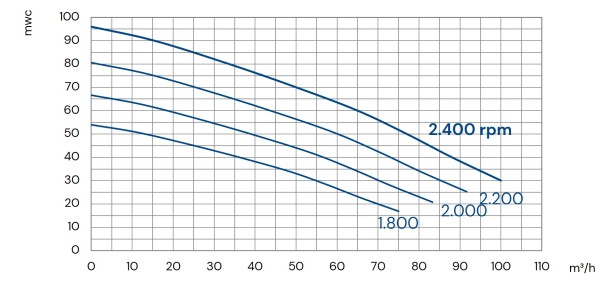

Q-H curve
