The PP64 is a high-pressure diesel-driven pump group suitable for lances, fire extinguishing applications, clear and contaminated water. The pump is dry self-priming and is fitted with a 6" male Perrot quick coupling, and a DIN flange DN100 PN16.
If desired, an external diesel tank can be rented.

PP64 v2

Specifications

  • Type: PP64C17 – Volvo TAD572VE
  • Applications: fluidization, fire fighting-like applications, clear and polluted water, …
  • Max. pressure: 132 mwc
  • Max. capacity: 350 m³/h
  • Engine: Volvo TAD572VE
  • Power output: 144 kW at 2.000 rpm
  • Free impeller passage: 25 mm
  • Starting system: 24 V electrical start
  • Weight: 5.620 kg
  • Tankage: external fuel tank required / 300 liter Adblue
  • Consumption: 35 liters/hour at maximum capacity
  • Autonomy: 55 h at maximum capacity with tank of 2.000 liter
  • L x W x H: 4.500 x 1.700 x 2.259 mm
  • Coupling: suction : Perrot quick coupling 6" male, discharge : DIN flange DN100 PN16
  • Characteristics: automatic dry self priming, dry-running possible
  • Version: on skid, sound attenuated, fully bunded canopy
  • Control panel: LOFA control panel with speed regulation
  • Level detection: automatic level adjustment by 2 floats or probe 4-20 mA
  • Equipment: lifting eye, forklift pockets, min. flow security, spark arrestor, chalwyn valve, master switch
  • Connection fuel tank: threeway valve for the connection of an external fuel tank

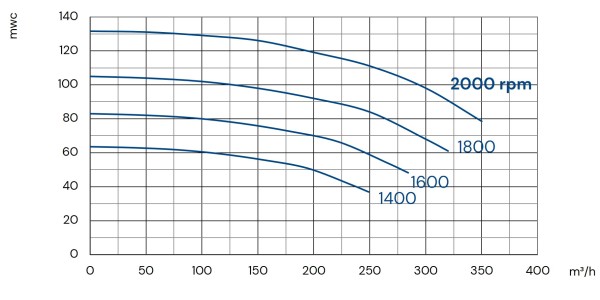

Q-H curve
