P6 EX
Explosion-proof electrically driven pump 6" for sewage, mud and contaminated water.
Request your quote Download the brochureThe P6 EX is an explosion-proof electrically driven pump group, is self-priming and is equipped with 6" male Perrot quick couplings. The pump is suitable for sewage water, muddy water, sludge and contaminated water.
Specifications
- Type: Pioneer P6, Ex II 3G C T4, motor Ex II 2G EEx d IIB T4
- Applications: sewage, mud, contaminated water, …

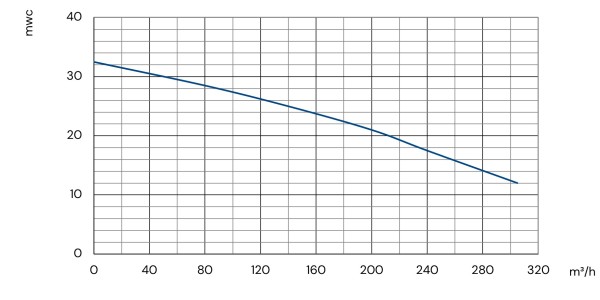

- Max. pressure: 32,5 mwc
- Max. capacity: 305 m³/h
- Motor: 3 x 400 V, 50 Hz
- Power output: 30 kW at 1.475 rpm
- Nominal current: 55 A
- Free impeller passage: 76 mm
- Weight: 1.760 kg
- L x W x H: 2.660 x 1.180 x 1.750 mm
- Coupling: suction and discharge side : Perrot quick couplings 6" male
- Characteristics: self priming (1x manual priming), thermistor in pump, vacuummeter, manometer, deaeration valve
- Control panel: explosion proof with thermo-magnetic motor protection, start/stop, Ex II 2G Ex d IIB T6 Gb
- Cable: 30 m power cable
- Plug: A.T.X. plug 63A 5P Ex II 2G Ex ed IIC T6
- Level detection: control panel equipped with 2 explosion-proof floats L = 20 m Ex II 1G Ex ia IIC T6
- Equipment: forklift pockets, central lifting eye
