The LIB 1-3 GX160 is a petrol-driven diaphragm pump, is portable and mobile, and is fitted with 3" male Perrot quick couplings. The pump is suitable for pumping water on construction sites and water with sand (contaminated water).

LIB 1 3

Specifications

  • Type: Libellula 1-3"
  • Applications: irrigation, water with sand, … (contaminated water)
  • Max. pressure: 15 mwc
  • Max. capacity: 19 m³/h
  • Engine: Honda GX 160
  • Power output: 2,5 kW at 2.900 rpm
  • Pump pulses: 65/min at 2.800 rpm
  • Free impeller passage: 50 mm
  • Starting system: recoil start
  • Weight: 64 kg (wraparound frame)
  • Tankage: 3,1 liters
  • Consumption: 1,4 liters/hour at maximum capacity
  • L x W x H: 950 x 700 x 780 mm
  • Coupling: suction and discharge side : Perrot quick couplings 3" male
  • Characteristics: dry self priming, portable and mobile set
  • Equipment: metal protection frame, tires

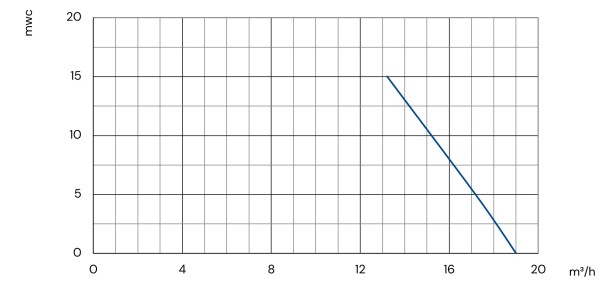

Q-H curve
