DSM 125/40
High-pressure electrically driven pump 8" for clear water.
Request your quote Download the brochureThe DSM 125/40 is a high-pressure, electrically driven pump group, suitable for clear water. The pump is equipped with a DIN flange DN200 PN16 and a DIN flange DN150 PN16.
Specifications
- Type: Kirloskar DSM 125/40
- Applications: clear water
- Max. pressure: 128 mwc
- Max. capacity: 395 m³/h
- Motor: 3 x 400 V, 60 Hz
- Power output: 132 kW at 1.750 rpm
- Nominal current: 236 A
- Free impeller passage: 6 mm
- Weight: 2.100 kg
- L x W x H: 2.220 x 1.060 x 1.750 mm
- Coupling: suction side : DIN flange DN200 PN16, discharge side : DIN flange DN150 PN16
- Centrifugal pump: priming centrifugal pump (non self priming)
- Characteristics: equipped with a terminal box for power connection (delivered without control panel)

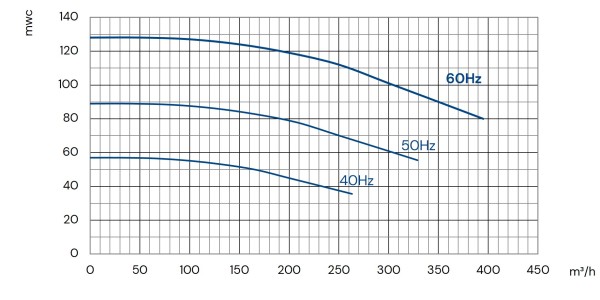

- Optional: actuating possible through our mobile frequency control panel
- Optional: operating with vacuum system is possible through separately switchable vacuum pump
- Equipment: stackable chassis, with forklift pockets
