The CD225ME/55 is an electrically driven pump group, is dry self-priming and suitable for sewage, muddy water and sludge. The pump is equipped with a 10" male Triflex quick coupling and a DIN flange DN200 PN10.

CD225ME 55 2

Specifications

  • Type: Godwin Pumps, CD225ME
  • Applications: sewage, sludge, muddy water, …
  • Max. pressure: 39 mwc
  • Max. capacity: 648 m³/h
  • Motor: 3 x 400 V, 50 Hz
  • Power output: 55,0 kW at 1.500 rpm
  • Nominal current: 97,6 A
  • Free impeller passage: 75 mm
  • Weight: 2.140 kg
  • L x W x H: 2.700 x 1.300 x 1.820 mm
  • Coupling: suction side : Triflex quick coupling 10" male, discharge side : DIN flange DN200 PN10
  • Centrifugal pump: dry self-priming centrifugal pump, equipped with membrane pump MP50
  • Characteristics: non return valve at discharge side, large free impeller passage, delivered without control panel
  • Cable: 20 m supply cable with free cable end + PTC resistor with 20 m cable
  • Optional: frequency control possible via our mobile control system unit
  • Equipment: lifting eye, stackable chassis

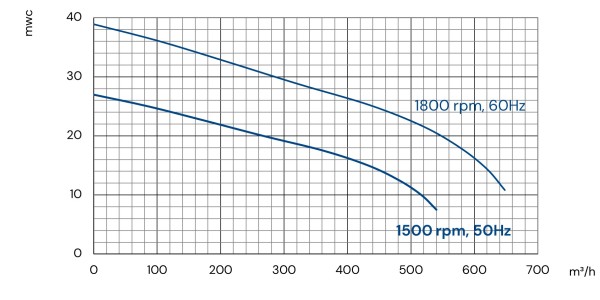

Q-H curve
