CD225ME
Electrically driven pump 8" for sewage, sludge and muddy water.
Request your quote Download the brochureThe CD225ME is an electrically driven pump group, is dry self-priming and is fitted with 8" male Triflex quick couplings. The pump is suitable for sewage water, muddy water and sludge.
Specifications
- Type: Godwin Pumps, Dri-Prime, CD225ME
- Applications: sewage, sludge, muddy water, …

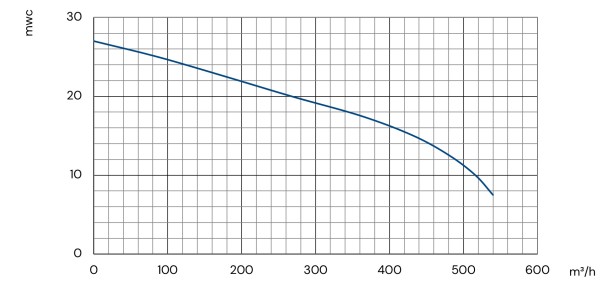

- Max. pressure: 27 mwc
- Max. capacity: 540 m³/h
- Motor: 3 x 400 V, 50 Hz
- Power output: 30,0 kW at 1.500 rpm
- Nominal current: 55 A
- Free impeller passage: 75 mm
- Weight: 1.060 kg
- L x W x H: 2.050 x 1.400 x 1.450 mm
- Coupling: suction and discharge side : Triflex quick couplings 8" male
- Centrifugal pump: dry self-priming centrifugal pump, equipped with Dri-Prime vacuum system
- Characteristics: compact pump set, with non return valve at discharge side, large free impeller passage
- Level detection: control panel with 2 float switches for automatic start/stop
- Plug: plug 63A 5P male
- Equipment: chassis, lifting eye
