The BS740 EX is an explosion-proof electric pump suitable for sewage water, sludge, bentonite and muddy water. The pump is dry self-priming and easy to move, and is equipped with 4" male Perrot quick couplings.

BS 740 EX

Specifications

  • Type: Eisele BS740 EX, motor Ex II 2G Ex dII BT4
  • Applications: sewage, sludge, bentonite, mud, ….
  • Max. pressure: 20 mwc
  • Max. capacity: 130 m³/h
  • Motor: 3 x 400 V, 50 Hz
  • Power output: 7,5 kW at 1.500 rpm
  • Nominal current: 14,2 A
  • Free impeller passage: 15 mm
  • Weight: 240 kg
  • L x W x H: 1.600 x 800 x 1.050 mm
  • Coupling: suction and discharge side : Perrot quick couplings 4" male
  • Characteristics: dry self priming up to 6,5 m, indefinite dry running possible, large free passage, easy to move
  • Control panel: explosion-proof switch with thermo-magnetic motor protection, start/stop, Ex II 2G Ex de IIC T6
  • Cable: 20 m power cable
  • Plug: A.T.X. plug 16A 5P EX II 2G Ex de IIC T6
  • Equipment: wheelbarrow model, lifting eye

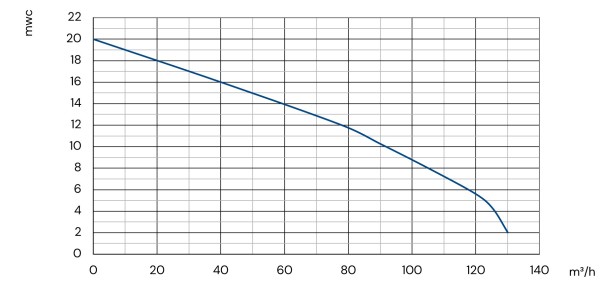

Q-H curve
