The BS154 EX is an explosion-proof electric pump that is dry self-priming and is suitable for sewage water, sludge, bentonite and muddy water. The pump is equipped with 6" male Perrot quick couplings.

BS 154 EX

Specifications

  • Type: Eisele BS154 EX, motor Ex II 2G Ex dII BT4
  • Applications: sewage, sludge, bentonite, mud, …
  • Max. pressure: 17,5 mwc
  • Max. capacity: 240 m³/h
  • Motor: 3 x 400 V, 50 Hz
  • Power output: 15 kW at 1.455 rpm
  • Nominal current: 28,4 A
  • Free impeller passage: 35 mm
  • Weight: 750 kg
  • L x W x H: 2.540 x 900 x 1.575 mm
  • Coupling: suction and discharge side : Perrot quick couplings 6" male
  • Characteristics: dry self priming up to 7 m, indefinite dry running possible, large free impeller passage
  • Control panel: explosion proof switch with thermo-magnetic motor protection, start/stop, Ex II 2G EEx d [ia] IIB T6
  • Cable: 20 m power cable
  • Plug: A.T.X. plug 32A 5P Ex II 2G Ex ed IIC T6
  • Level detection: control box equipped with 1 explosion-proof float L = 20 m Ex II 2G Ex ia IIB T5
  • Equipment: forklift pockets, central lifting eye

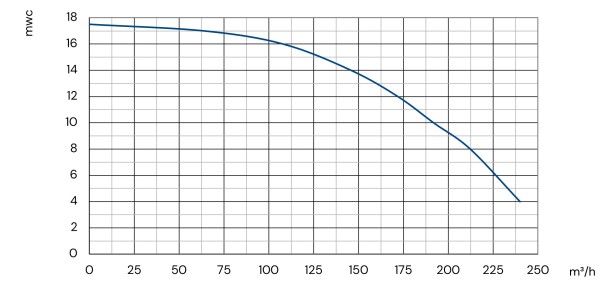

Q-H curve
