8090-5/4L42C
High-pressure diesel-driven pump 4", sound attenuated, for slightly polluted water.
Request your quote Download the brochureThe 8090-5/4L42C is a high-pressure diesel-driven pump group, not self-priming, and is suitable for lances, fire extinguishing applications and slightly contaminated water. The pump is equipped with a 4" male Perrot quick coupling and a DIN flange DN80 PN16.
Specifications
- Type: 8090-5/4L42C
- Applications: fluidization, fire fighting-like applications, clean or slightly polluted water

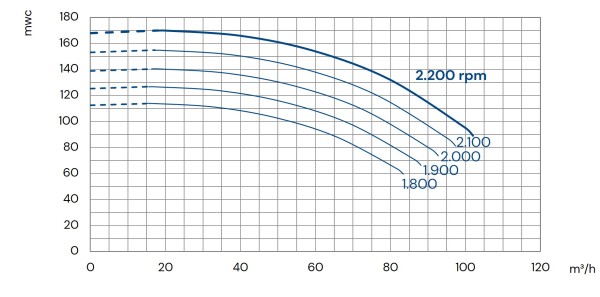

- Max. pressure: 170 mwc
- Max. capacity: 102 m³/h
- Engine: Hatz 4L42C
- Power output: 43,4 kW at 2.200 rpm
- Free impeller passage: 6 mm (prefilter)
- Starting system: 12 V electrical start
- Weight: 1.720 kg (full tank)
- Tankage: 230 liters
- Consumption: 13 liters/hour at maximum capacity
- L x W x H: 2.660 x 1.180 x 1.550 mm
- Coupling: suction : Perrot quick couplings 4" male, discharge : DIN flange DN80 PN16
- Characteristics: not self priming (hand priming unit mounted), prefilter, non return valve, manometer and gate valve
- Equipment: vacuummeter, master switch, central lifting eye, forklift pockets
