The 150VL is a diesel-driven pump group suitable for sewage water, muddy water and sludge. The pump is fully enclosed and fitted with 6" male Perrot quick couplings.
If desired, an external diesel tank can be rented.

150 VL

Specifications

  • Type: Pioneer 150VL
  • Applications: sewage, sludge, slurry, …
  • Max. pressure: 28 mwc
  • Max. capacity: 350 m³/h
  • Engine: Perkins 404D-22T
  • Power output: 29,3 kW at 2.000 rpm
  • Free impeller passage: 130 mm
  • Starting system: 12 V electric start
  • Weight: 1.730 kg (full tank)
  • Tankage: 260 liters
  • Consumption: 9 liters/hour at maximum capacity
  • Autonomy: 28 h at maximum capacity
  • L x W x H: 2.300 x 1.100 x 1.610 mm
  • Couplings: suction and discharge : Perrot quick coupling 6" male
  • Characteristics: automatic dry self priming, indefinite dry-running possible
  • Version: on skid, fully bunded canopy, sound attenuated 64 dB at 7 m
  • Level detection: float switches for automatic working
  • LEL detection: socket for LEL detection
  • Equipment: battery switch, spark-arrestor, central lifting eye, forklift pockets, Viton seals
  • Connection fuel tank: threeway valve for the connection of an external fuel tank

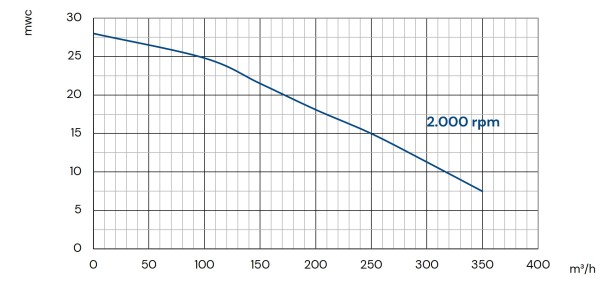

Q-H curve
