The 100VM-B is a diesel-driven pump group, fully enclosed, and is suitable for sewage water, muddy water, contaminated water and bentonite. The pump is fitted with 4" male Perrot quick couplings.
If desired, an external diesel tank can be rented.

100VM B

Specifications

  • Type: Pioneer 100VM-B
  • Applications: sludge, wastewater, sewage, bentonite, …
  • Max. pressure: 46 mwc
  • Max. capacity: 320 m³/h
  • Engine: Perkins 404D-22T
  • Power output: 29,3 kW at 2.000 rpm
  • Free impeller passage: 85 mm
  • Starting system: 12 V electrical start
  • Weight: 1.630 kg
  • Tankage: 260 liters
  • Consumption: 6,5 liters/hour at maximum capacity
  • Autonomy: 40 h at maximum capacity
  • L x W x H: 2.300 x 1.100 x 1.610 mm
  • Coupling: suction and discharge : Perrot quick coupling 4" male
  • Characteristics: automatic dry self priming, dry-running possible
  • Version: on skid, sound attenuated, fully bunded canopy
  • Suction box: extra door for easy acces to suction box, suction box with connections to rinse
  • Level detection: float switches for automatic working
  • LEL-detection: socket for LEL-detection
  • Equipment: spark arrestor, master switch, central lifting eye and forklift pockets
  • Connection fuel tank: threeway valve for connection of an external fuel tank

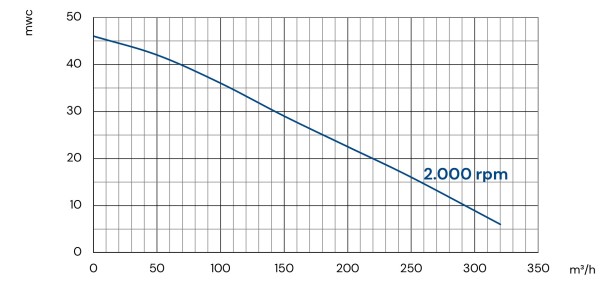

Q-H curve
