The automatic version of the LB has an attached water detection sensor with two rubber-molded 304 stainless steel probes, designed for mobile use. The LB480A is a small, single-phase contractor pump, suitable for sandy water, and fitted with a 2" male Perrot quick coupling.

LB 480 A

Specifications

  • Type: Tsurumi, LB480A
  • Applications: sandy water ...
  • Max. pressure: 11 mwc
  • Max. capacity: 13,5 m³/h
  • Motor: 1 x 230 V, 50 Hz
  • Power output: 0,59 kW at 2.850 rpm
  • Nominal current: 2,9 A
  • Free impeller passage: 6 mm
  • Weight: 10,4 kg (without cable)
  • Height: 275 mm
  • Diameter: 187 mm (without sensor) / 223 mm (with sensor)
  • Coupling: discharge side : Perrot quick coupling 2" male
  • Characteristics: small submersible contractorpump, lightweight, very durable, hard-wearing pump
  • Cable: 10 m power cable
  • Plug: electric plug
  • Level detection: electronic level switch with stainless steel probes

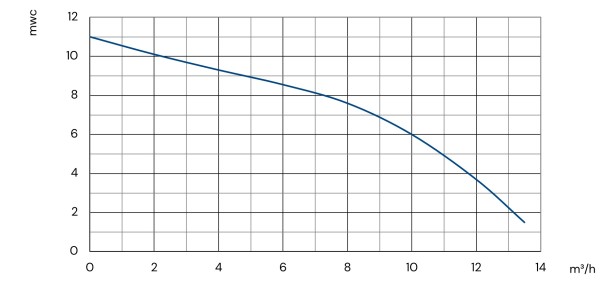

Q-H curve

Get your quote here for LB480A
