The KTZ32.2 is a three-phase, wear-resistant submersible contractor pump suitable for muddy water and sandy water. This submersible pump has an impeller made of hard chrome steel and is equipped with a 3" male Perrot quick coupling.

KTZ32.2

Specifications

  • Type: Tsurumi, KTZ32.2
  • Applications: sandy, muddy water, …
  • Max. pressure: 20,5 mwc
  • Max. capacity: 48 m³/h
  • Motor: 3 x 400 V, 50 Hz
  • Power output: 3,1 kW at 2.850 rpm
  • Nominal current: 5,5 A
  • Free impeller passage: 8,5 mm
  • Weight: 34 kg (without cable)
  • Height: 529 mm
  • Diameter: 235 mm
  • Coupling: discharge side : Perrot quick coupling 3" male
  • Characteristics: very durable, hardwearing pump, compact contractor pump, open impeller in chromium iron
  • Cable: 20 m power cable
  • Start/stop: start-stop switch with thermo-magnetic motor protection
  • Plug: plug 16A 5P

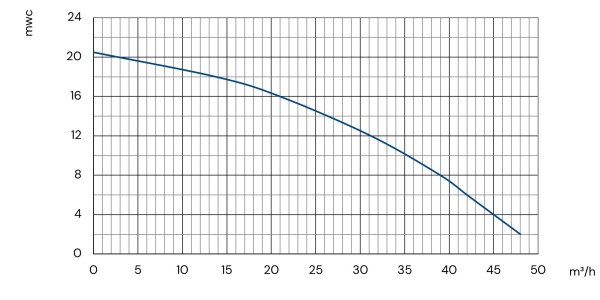

Q-H curve
