KTVE35.5
Semi-vortex submersible pump 3" with probe for muddy and gritty water.
Request your quote Download the brochureThe automatic version of the KTV has electrode control with one electrode for automatic operation. The KTVE35.5 is a semi-vortex submersible pump, wear resistant, and equipped with a 3" male Perrot quick coupling. This pump is suitable for sludge water and sandy water.
Specifications
- Type: Tsurumi, KTVE35.5
- Applications: muddy, gritty water, …

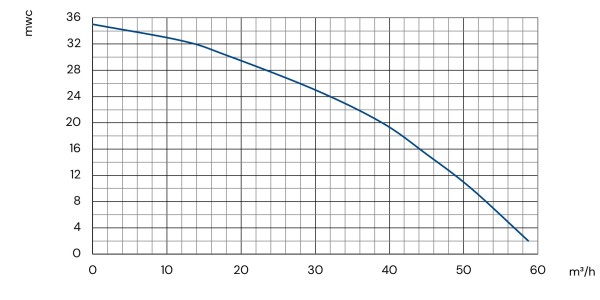

- Max. pressure: 35 mwc
- Max. capacity: 58,7 m³/h
- Motor: 3 x 400 V, 50 Hz
- Power output: 7,47 kW at 2.850 rpm
- Nominal current: 9,7 A
- Free impeller passage: 8,5 mm
- Weight: 47 kg (without cable)
- Height: 620 mm
- Diameter: 300 mm
- Coupling: discharge side : Perrot quick coupling 3" male
- Characteristics: hardwearing yet light pump, compact pump, suction cover and pump casing with thick rubber lining
- Cable: 20 m power cable
- Start/stop: start-stop switch with thermo-magnetic motor protection
- Plug: plug 16A 5P
- Level detection: electronic level switch with stainless steel probe
