The KTV3-55 is a contractor pump with semi-vortex impeller and equipped with a 3" male Perrot quick coupling. The pump is lightweight, robust, three phase and is suitable for sludge water and sandy water.

KTV3 55

Specifications

  • Type: Tsurumi, KTV3-55
  • Applications: mud, gritty water, …
  • Max. pressure: 35 mwc
  • Max. capacity: 58,9 m³/h
  • Motor: 3 x 400 V, 50 Hz
  • Power output: 7,06 kW at 2.870 rpm
  • Nominal current: 11 A
  • Free impeller passage: 8,5 mm
  • Weight: 47 kg (without cable)
  • Height: 730 mm
  • Diameter: 300 mm
  • Coupling: discharge side : Perrot quick coupling 3" male
  • Characteristics: hardwearing yet light pump, compact pump, suction cover and pump casing with thick rubber lining
  • Cable: 20 m power cable
  • Start/stop: start-stop switch with thermo-magnetic motor protection
  • Plug: plug with phase inverter 16A 5P

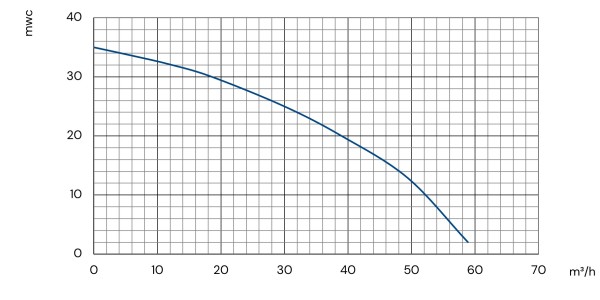

Q-H curve
