The KRS2-69 is a three-phase, robust submersible pump with an impeller in nodular cast iron, 4-pole motor (1,450 rpm), and equipped with a 6" male Perrot quick coupling. The pump is widely applicable and very wear resistant, and is suitable for sludge water and sandy water.

KRS2 69

Specifications

  • Type: Tsurumi, KRS2-69
  • Applications: muddy, sandy water, …
  • Max. pressure: 21 mwc
  • Max. capacity: 255 m³/h
  • Motor: 3 x 400 V, 50 Hz
  • Power output: 11,1 kW at 1.450 rpm
  • Nominal current: 19 A
  • Free impeller passage: 20 mm
  • Weight: 155 kg (without cable)
  • Height: 812 mm
  • Diameter: 487 mm
  • Coupling: discharge side : Perrot quick coupling 6" male
  • Characteristics: durable, hardwearing pump, robust high-efficiency dewatering pump, impeller in ductile iron casting
  • Cable: 20 m power cable
  • Start/stop: start-stop switch with thermo-magnetic motor protection
  • Plug: plug 32A 5P

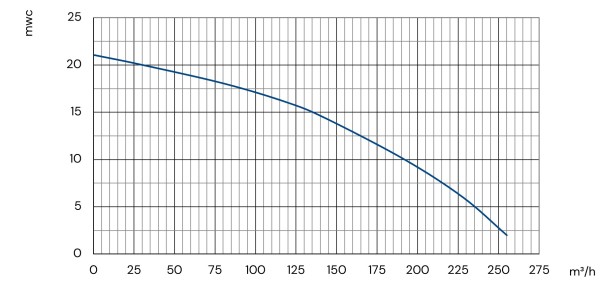

Q-H curve
