The KRS1022 is a submersible pump with a large flow rate, suitable for sludge water and sandy water. The pump has an impeller made of wear-resistant nodular cast iron, a 4-pole motor (1,450 rpm), and is equipped with a DIN flange DN250 PN10.

KRS 1022

Specifications

  • Type: Tsurumi, KRS1022
  • Applications: sandy, muddy water, …
  • Max. pressure: 12 mwc
  • Max. capacity: 720 m³/h
  • Motor: 3 x 400 V, 50 Hz
  • Power output: 26,5 kW at 1.450 rpm
  • Nominal current: 44 A
  • Free impeller passage: 25 mm
  • Weight: 450 kg (without cable)
  • Height: 1.439 mm
  • Diameter: 520 mm
  • Coupling: discharge side : DIN flange DN250 PN10
  • Characteristics: durable, hardwearing pump, robust high-efficiency dewatering pump, impeller in ductile iron casting
  • Cable: 20 m power cable
  • Level detection: stop-auto-start control panel suitable for use outdoors, 2 float switches, L = 20 m
  • Plug: plug 63A 5P

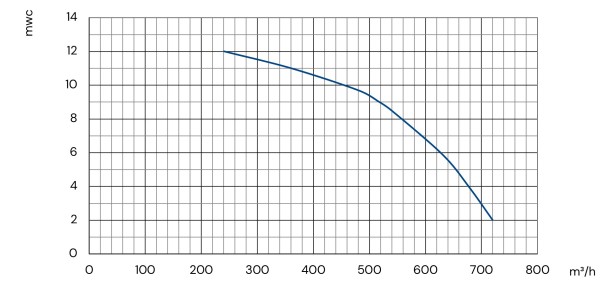

Q-H curve
