The GSL35 is a submersible sewage pump with vortex impeller and large free passage, equipped with a 3" male Perrot quick coupling. The pump is lightweight and single phase, and is suitable for wastewater with large solids.

GSL35

Specifications

  • Type: Godwin, GSL35
  • Applications: wastewater, sewage, muddy water, …
  • Max. pressure: 15 mwc
  • Max. capacity: 48 m³/h
  • Motor: 3 x 400 V, 50 Hz
  • Power output: 2,8 kW at 2.800 rpm
  • Nominal current: 4,7 A
  • Free impeller passage: 50 mm
  • Weight: 27 kg (without cable)
  • Height: 702 mm
  • Diameter: 370 mm
  • Coupling: discharge side : Perrot quick coupling 3" male
  • Characteristics: large free impeller passage, lightweight, vortex impeller
  • Cable: 20 m power cable
  • Start/stop: start-stop switch with thermo-magnetic motor protection
  • Plug: plug 16A 5P with phase inverter

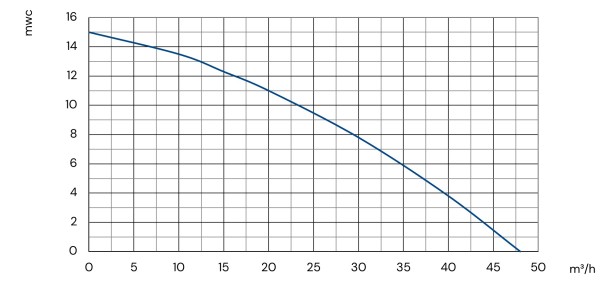

Q-H curve
