The CH432-1,6/2D EX is a wear-resistant, explosion-proof submersible pump, made entirely of stainless steel. The pump is fitted with a 2" male Perrot quick coupling and is suitable for pumping industrial wastewater and contaminated water in an explosive environment.

CH 432 EX

Specifications

  • Type: Homa, CH432-1,6/2D EX, Ex II 2 G EX c d IIB T4
  • Applications: industrial wastewater, contaminated water : for use in an explosive environment
  • Max. pressure: 18,4 mwc
  • Max. capacity: 30 m³/h
  • Motor: 3 x 400 V, 50 Hz
  • Power output: 1,6 kW at 2.800 rpm
  • Nominal current: 2,8 A
  • Free impeller passage: 10 mm
  • Weight: 30 kg (pump without cable and control box) - 160 kg (complete set)
  • L x W x H: 710 x 710 x 1.050 mm (complete set)
  • Diameter: 280 mm (pump)
  • Coupling: discharge side : Perrot quick coupling 2" male
  • Characteristics: durable submersible pump, completely in stainless steel (316), seals in Viton
  • Cable: 20 m cable between pump and control panel, 5 m cable between control panel and plug
  • Control panel: control panel EX II 2G Ex d [ia] IIB T6
  • Plug: A.T.X. plug 16A 5P Ex II 2 G Ex de IIC T6
  • Level detection: control panel equipped with 2 explosion-proof floats, L = 20 m, Ex II 1G Ex ia IIC T6

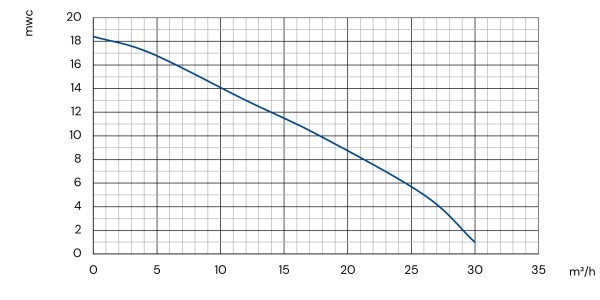

Q-H curve
