The 80BZ41.5 is an extra heavy, three-phase, cast iron submersible sewage pump with a closed channel impeller and large free passage, for pumping wastewater with large solids. The discharge connection is fitted with a 3" male Perrot quick coupling.

80BZ41.5

Specifications

  • Type: Tsurumi, 80BZ41.5
  • Applications: strongly contaminated fluids, wastewater, sewage, mud water, …
  • Max. pressure: 9,2 mwc
  • Max. capacity: 87,2 m³/h
  • Motor: 3 x 400 V, 50 Hz
  • Power output: 2,2 kW at 1.450 rpm
  • Nominal current: 4 A
  • Free impeller passage: 80 mm
  • Weight: 78 kg (without cable)
  • Height: 631 mm
  • Diameter: 523 mm
  • Coupling: discharge side : Perrot quick coupling 3" male
  • Characteristics: large free impeller passage, closed single-channel impeller
  • Cable: 10 m power cable
  • Start/stop: start-stop switch with thermo-magnetic motor protection
  • Plug: plug 16A 5P

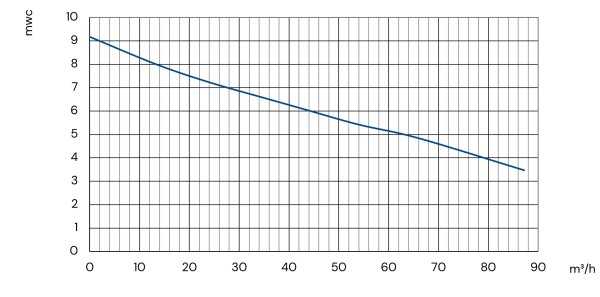

Q-H curve
