The 80B21.5 is a three-phase submersible sewage pump with an open channel impeller, which guarantees that wastewater is pumped efficiently and without clogging. The pump has a large free passage and is fitted with a 3" male Perrot quick coupling.

80B21.5

Specifications

  • Type: Tsurumi, 80B21.5
  • Applications: strongly contaminated fluids, wastewater, sewage, effluent water, ….
  • Max. pressure: 17 mwc
  • Max. capacity: 58,9 m³/h
  • Motor: 3 x 400 V, 50 Hz
  • Power output: 1,88 kW at 2.850 rpm
  • Nominal current: 3,9 A
  • Free impeller passage: 40 mm
  • Weight: 38 kg (without cable)
  • Height: 483 mm
  • Diameter: 446 mm
  • Coupling: discharge side : Perrot quick coupling 3" male
  • Characteristics: large free impeller passage, open single-channel impeller
  • Cable: 10 m power cable
  • Start/stop: start-stop switch with thermo-magnetic motor protection
  • Plug: plug 16A 5P

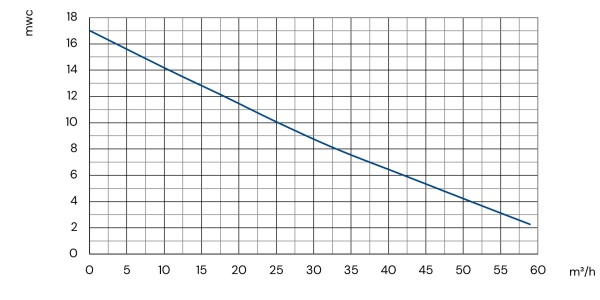

Q-H curve
