100UZ43.7
Submersible sewage pump 4" for strongly contaminated fluids.
Request your quote Download the brochureThe 100UZ43.7 is a three-phase submersible sewage pump and is suitable for pumping water with large solids, thanks to the vortex impeller and large free passage. The pump is equipped with a 4" male Perrot quick coupling.
Specifications
- Type: Tsurumi, 100UZ43.7
- Applications: strongly contaminated fluids, wastewater, sewage, muddy water, …

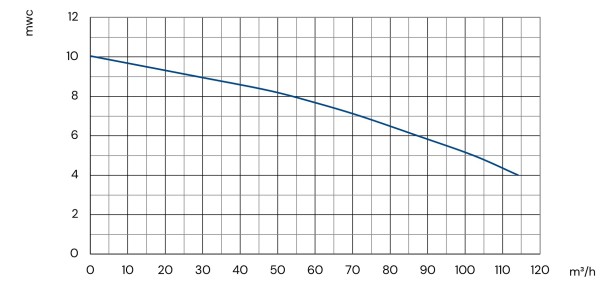

- Max. pressure: 10,1 mwc
- Max. capacity: 114 m³/h
- Motor: 3 x 400 V, 50 Hz
- Power output: 4,74 kW at 1.410 rpm
- Nominal current: 7,9 A
- Free impeller passage: 80 mm
- Weight: 79 kg (without cable)
- Height: 737 mm
- Diameter: 628 mm
- Coupling: discharge side : Perrot quick coupling 4" male
- Characteristics: large free impeller passage, vortex impeller
- Cable: 10 m power cable
- Start/stop: start-stop switch with thermo-magnetic motor protection
- Plug: plug 16A 5P
